AND-OR-Invert Gates, Integrated Circuits (ICs)

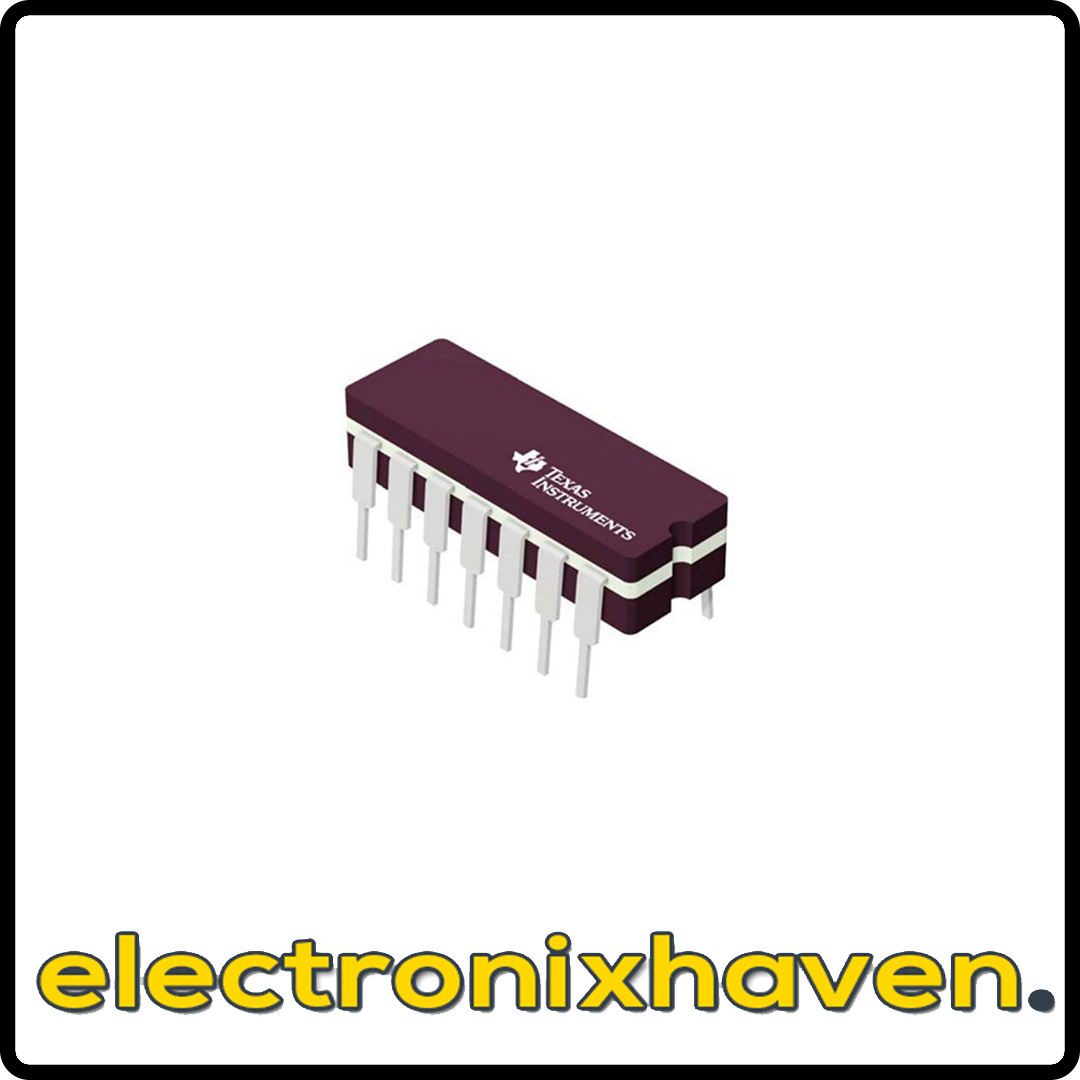

Texas Instruments SN74HC15N IC Logic Gates 4-Channel 3-Input AND-OR-Invert 14-DIP
Availability:
10 in stock
| Feature | Description |
|---|
| Logic Function | AND-OR-Invert (AOI) Gates |
| Number of Channels | 4 |
| Package Type | 14-DIP |
£0.99
10 in stock
The Texas Instruments SN74HC15N is a high-speed CMOS logic IC designed to perform AND-OR-Invert (AOI) operations with three inputs for each of its four channels. This versatile IC is ideal for a variety of digital logic applications, providing reliable performance and high noise immunity. Encased in a standard 14-DIP package, it is suitable for through-hole mounting in PCB designs. The SN74HC15N operates over a wide supply voltage range of 2V to 6V, making it compatible with a variety of logic levels and power supplies. It is perfect for use in industrial, consumer, and automotive electronics requiring complex logic operations.
Specifications Table:
| Specification | Detail |
|---|---|
| Manufacturer | Texas Instruments |
| Model | SN74HC15N |
| Logic Function | AND-OR-Invert (AOI) Gates |
| Number of Channels | 4 |
| Number of Inputs | 3 per channel |
| Package / Case | 14-DIP |
| Supply Voltage Range | 2V to 6V |
| Input Voltage Range | 0V to V<sub>CC</sub> |
| Output Voltage Range | 0V to V<sub>CC</sub> |
| Operating Temperature | -40°C to +85°C |
