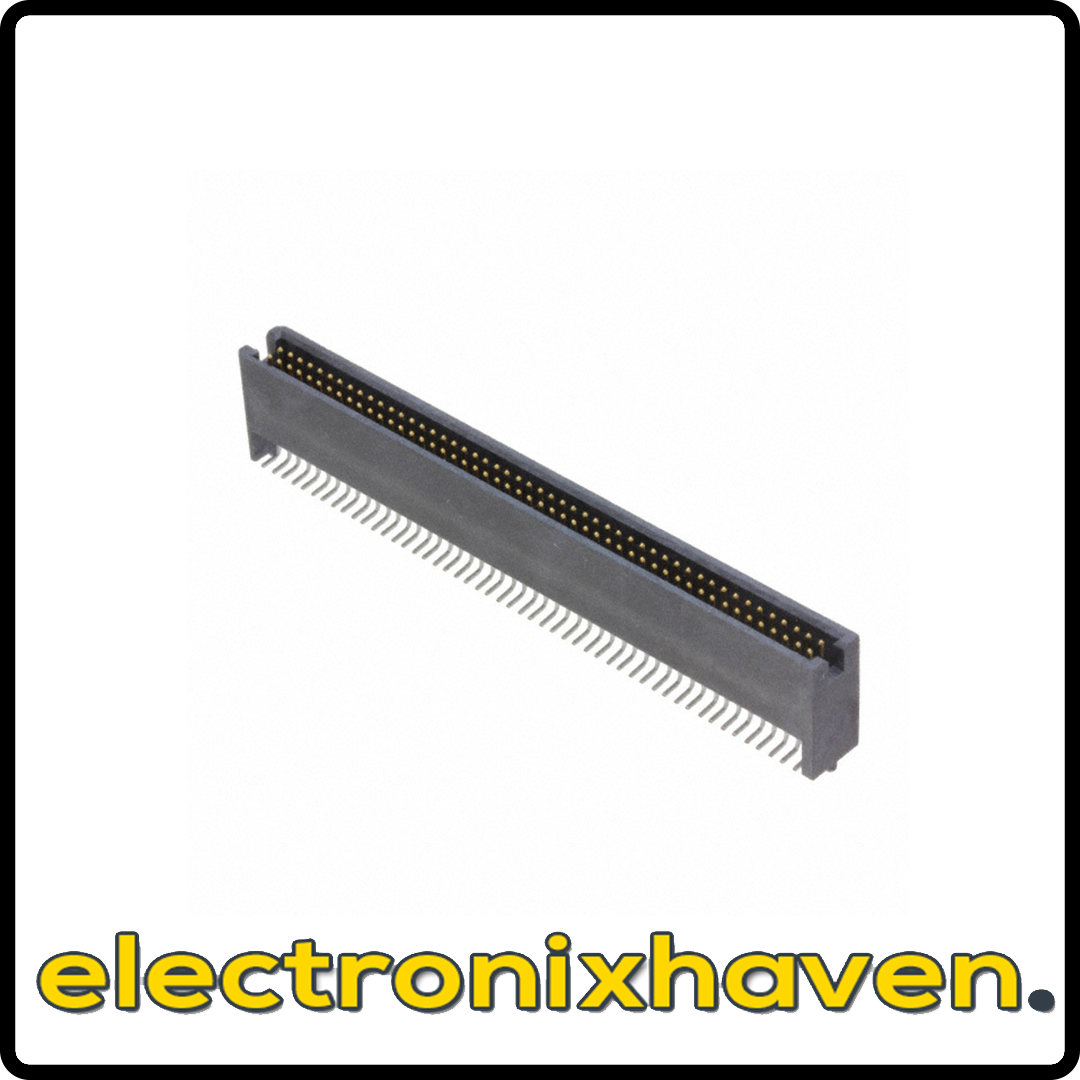

Samtec Inc. TFC-150-32-F-D-A .050 X .050 TERMINAL STRIP (Connector Header Surface Mount 100 position 0.050" (1.27mm))
, ,

Samtec Inc. TFC-150-32-F-D-A .050 X .050 TERMINAL STRIP (Connector Header Surface Mount 100 position 0.050″ (1.27mm))

Availability:

20 in stock
Add to wishlist
Manufacturer
Samtec Inc.
Manufacturer Product Number
TFC-150-32-F-D-A
Description
.050 X .050 TERMINAL STRIP

£9.95

20 in stock

Mfr
Samtec Inc.
Series
Tiger Eye™ TFC
Packaging
Tube
Part Status
Active
Connector Type
Header
Contact Type
Male Pin
Pitch – Mating
0.050″ (1.27mm)
Number of Positions
100
Number of Rows
2
Row Spacing – Mating
0.050″ (1.27mm)
Number of Positions Loaded
All
Style
Board to Board or Cable
Shrouding
Shrouded – 4 Wall
Mounting Type
Surface Mount
Termination
Solder
Fastening Type
Push-Pull
Contact Length – Mating
0.139″ (3.53mm)
Contact Length – Post
–
Overall Contact Length
–
Insulation Height
0.441″ (11.20mm)
Contact Shape
Square
Contact Finish – Mating
Gold
Contact Finish Thickness – Mating
3.00µin (0.076µm)
Contact Finish – Post
Tin
Contact Material
Phosphor Bronze
Insulation Material
Liquid Crystal Polymer (LCP)
Features
Board Guide
Operating Temperature
-55°C ~ 125°C
Ingress Protection
–
Material Flammability Rating
UL94 V-0
Insulation Color
Black
Current Rating (Amps)
3.1A per Contact
Voltage Rating
275VAC
Base Product Number
TFC-150
SKU: S-STN-00060-A4 Categories: , ,
