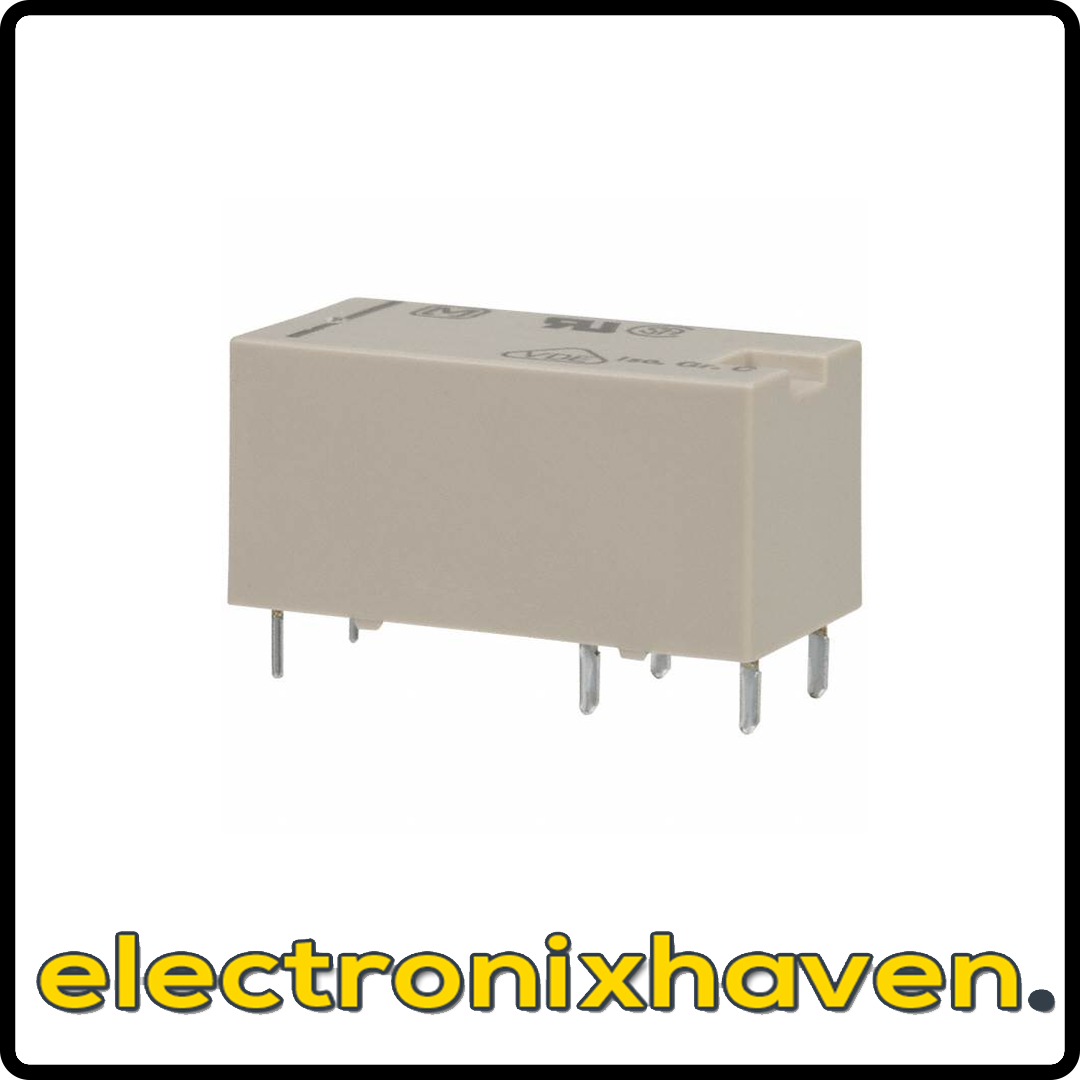

Panasonic Electric Works RELAY GEN PURPOSE DPST 8A 5V (General Purpose Relay DPST-NO/NC (1 Form A, 1 Form B) 5VDC Coil Through Hole)
,

Panasonic Electric Works RELAY GEN PURPOSE DPST 8A 5V (General Purpose Relay DPST-NO/NC (1 Form A, 1 Form B) 5VDC Coil Through Hole)

Availability:

59 in stock
Add to wishlist
Manufacturer
Panasonic Electric Works
Manufacturer Product Number
DE1A1B-5V
Description
RELAY GEN PURPOSE DPST 8A 5V

£4.95

59 in stock

Mfr
Panasonic Electric Works
Series
DE
Packaging
Tube
Part Status
Active
Mounting Type
Through Hole
Coil Voltage
5VDC
Contact Form
DPST-NO/NC (1 Form A, 1 Form B)
Contact Rating (Current)
8 A
Switching Voltage
250VAC, 30VDC – Max
Load – Max Switching
2500VA, 300W
Coil Current
40 mA
Coil Type
Non Latching
Features
–
Termination Style
PC Pin
Seal Rating
–
Coil Insulation
–
Must Operate Voltage
3.5 VDC
Must Release Voltage
0.5 VDC
Operate Time
10 ms
Release Time
5 ms
Operating Temperature
-40°C ~ 70°C
Contact Material
Silver Tin Oxide (AgSnO)
Approval Agency
CSA, UR, VDE
Relay Type
General Purpose
Grade
–
Qualification
–
Coil Resistance
125 Ohms
Base Product Number
DE1A1
