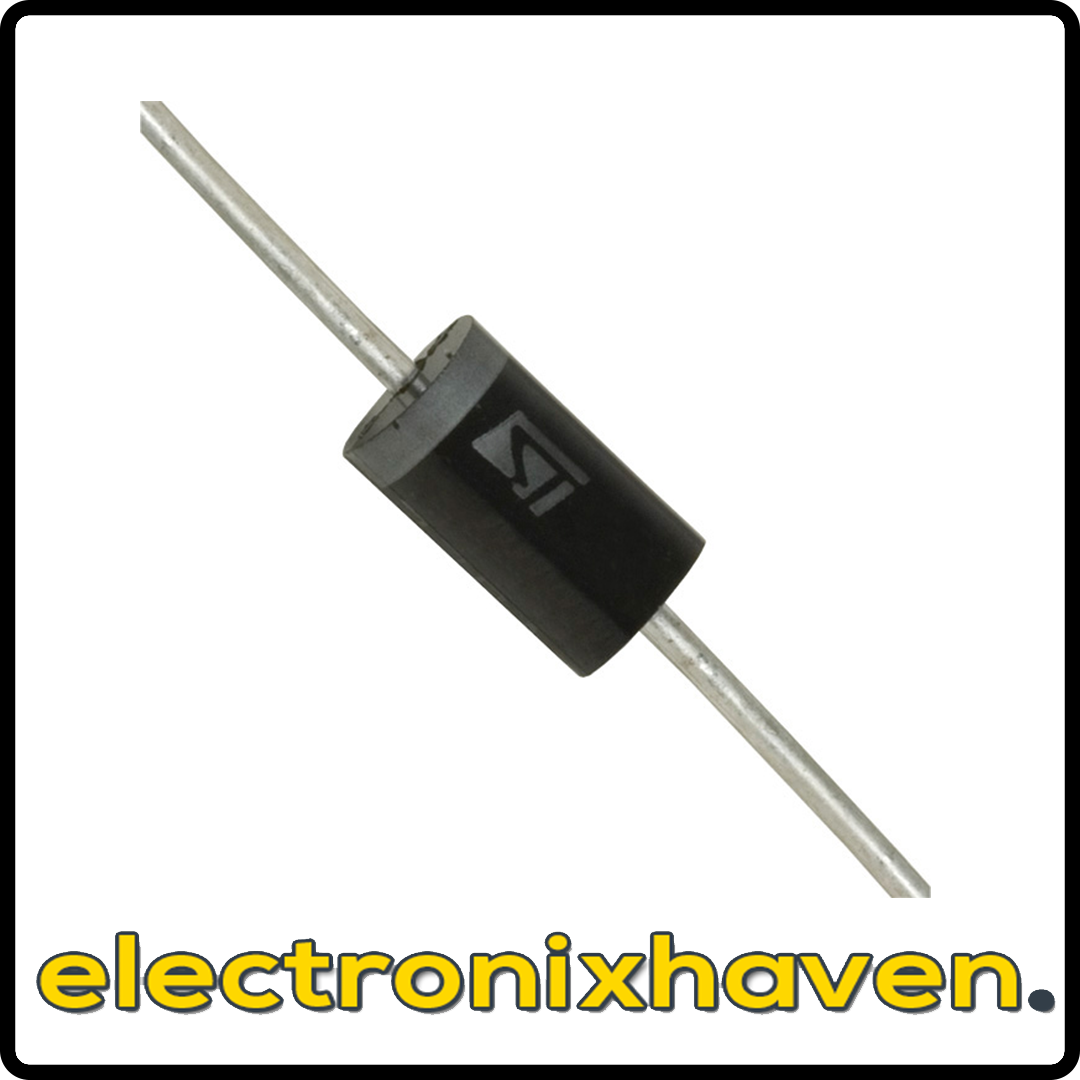

The 1.5KE200A is a Transient Voltage Suppression (TVS) diode designed to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. With a standoff voltage of 200V and a peak pulse power dissipation of 1500W, this diode provides robust protection against high voltage surges. The axial leaded design allows for easy integration into various circuit boards. This TVS diode features a low clamping voltage, high surge capability, and fast response time, ensuring reliable protection for electronic devices in automotive, industrial, and consumer electronics applications.
Specifications Table:
| Specification |
Detail |
| Type |
TVS Diode |
| Standoff Voltage (V<sub>WM</sub>) |
200V |
| Breakdown Voltage (V<sub>BR</sub>) |
200V – 220V |
| Clamping Voltage (V<sub>C</sub>) |
274V |
| Peak Pulse Power Dissipation (P<sub>PP</sub>) |
1500W |
| Peak Pulse Current (I<sub>PP</sub>) |
5.5A |
| Package / Case |
DO-201 |
| Mounting Type |
Through Hole (Axial) |
| Operating Temperature |
-55°C to +175°C |
1.5KE200A TVS Diode, 200V, 1500W, Axial
